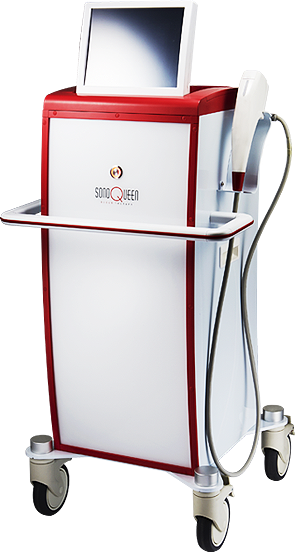

Clinics looking at HIFU lifting can consider Sonoqueen, a high intensity focused ultrasound system that sends micro-focused energy of up to 1.2 J into the dermis and the SMAS (superficial muscular aponeurotic system). It is used for lifting and tightening the skin of the face and neck and for the look of wrinkles, and it comes in both a stand-mounted and a portable format.
The ultrasound energy is concentrated at a fixed depth. At that focal point the tissue reaches roughly 60β70 Β°C, forming small points of thermal coagulation, while the layers lying between the surface and the focus are left untouched. Output consistency is verified with a JIG test using a phantom model, and the transducer face uses a non-toxic contact film (membrane).
| Cartridge | Focal depth | Peak energy | Frequency | Format |
|---|---|---|---|---|
| M4 | 4.5 mm | 1.2 J | 4 MHz | multi-spot, standard |
| M7 | 3.0 mm | 1.05 J | 7 MHz | multi-spot, standard |
| S4 | 4.5 mm | 1.2 J | 4 MHz | single-spot, optional |
| S7 | 2.0 mm | 1.05 J | 7 MHz | eye area, optional |
Dot spacing is 1.2 mm over a 25.0 mm line, and the thermal range runs from 44.0 to 71.0 Β°C. The stand unit measures 516 Γ 610 Γ 1,140 mm and weighs 33 kg; the portable unit is 428 Γ 370 Γ 370 mm and 6.7 kg. Both run on AC 100β240 V, 50/60 Hz.
Forehead, the sides of the face, around the eyes and mouth, cheeks, under the chin and the neck.
Delivered with the main unit, a handpiece and a power cord, plus the M4 and M7 cartridges as standard; the S4 and S7 cartridges can be added as options.
Is there a cartridge for the eye area? Yes β the optional S7 eye-type transducer works at 7 MHz and 2.0 mm.
Who should operate it? A trained, qualified practitioner. Our guide to selecting equipment for facial work covers wider purchasing considerations.
